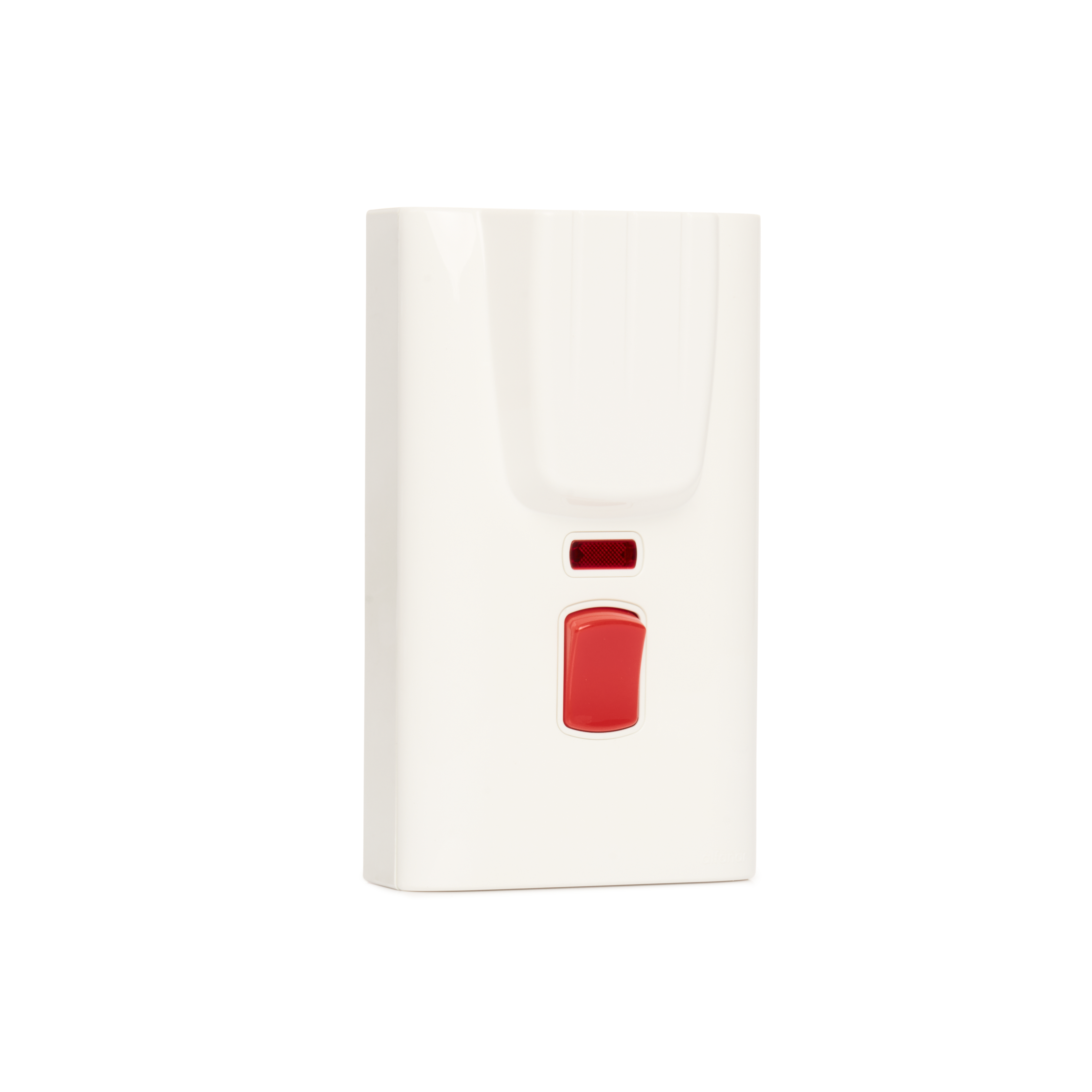

ALF4747WHW-FO

25A 2G DP Vertical Switch Indicator Flex

General

Trade price
£18.20
Box quantity
5
ABC indicator
A
Insert colour
white
Face plate finish
moulded
Rocker finish
red moulded
With indicator lamp
yes
Number of rockers
1
Total gross weight (g) includes packing
1735
Total net weight (g) excluding packaging
1533
Individual unit weight (g)
307
Width mm
145
Height mm
95
Depth mm
20
Size/Dimensions (mm)
145X95X20
Surf area M^2
0.037

Technical

Associated standards
BS EN 60669-1
Rated voltage
220-250V
Rated current
45A
Frequency
50-60Hz
Wiring system
2 pole
Min. switch contact gap
3mm
Ambient operating temperature
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection
IP2X
Terminal capacity
2 x 4mm 1 x 6mm 1 x 10mm
Face plate material
polycarbonate
Minimum wall box depth
47
Nature of supply
AC
Fixing screws
2 x M3.5
